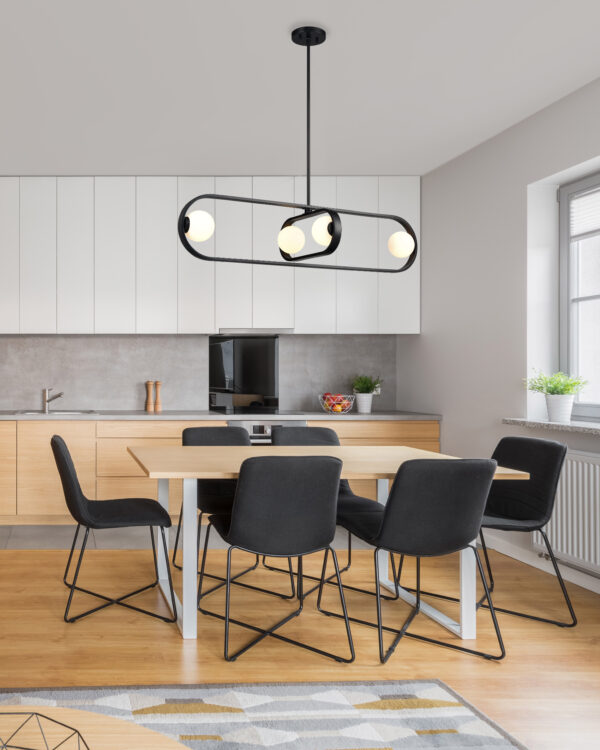

Atwood 4 Light Linear
Product description
Named after a Canadian poet, DVIS Atwood collection features a series of round opal glass and bands that caress together. Options in sizes which will suite any space with a collection you have been dreaming of!
Finish option
Last inventory update: January 23, 2022 8:04 am
Resources
Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on print
| PARENT CODE | DVP45002 |
| FAMILY | Atwood |
| PRODUCT CLASS | Ceiling |
| PRODUCT SUBCLASS | Linear |
| WARRANTY | 5 Years Residential or 20000 Hours Commercial |
| PRODUCT LENGTH/DIAMETER | 38 inches | 965 mm |
| PRODUCT WIDTH | 14.5 inches | 370 mm |
| PRODUCT DEPTH | N/A inches | N/A mm |
| PRODUCT HEIGHT | 9 inches | 230 mm |
| MINIMUM PRODUCT HEIGHT | 10.5 inches | 267 mm |
| MAXIMUM PRODUCT HEIGHT | 50.5 inches | 1283 mm |
| CANOPY LENGTH/DIAMETER | 5.2 inches | 132 mm |
| CANOPY WIDTH | inches | mm |
| CANOPY THICKNESS | 0.8 inches | mm |
| ORIENTATION OF LIGHT SOURCE | Sideways |
| TOTAL WATTAGE | 80 |
| NUMBER OF SOCKETS | 4 |
| WATTAGE OF INDIVIDUAL BULB SOCKET | 20 |
| LAMP CONFINEMENT | Fully Enclosed |
| SOCKET TYPE | G9 |
| RECOMMENDED BULB | DVLG9BC30A |
| VOLTAGE (V) | 120 |
| BULBS INCLUDED | No |
| TOTAL INITIAL LUMEN OUTPUT | N/A |
| RECQUIRED DIMMER | N/A |
| CRI | N/A |
| COLOR TEMPERATURE | N/A |
| PIPE / CHAIN INCLUDED | Pipe Kit Available |
| PIPE INFORMATION | 40 (15 + 12 + 9 + 4) x 0.5 Inches Pipe Kit |
| CHAIN INFORMATION | N/A |
| WIRE / CORD | 10 Ft |
| MAX SLOPED CEILING ANGLE | Hang-Straight 19 Degrees |
| *Conversion 19° to 45° : ASY0101+Finish (2 loops + 1 chain): For Additional Cost | |
| WALL / CEILING MOUNTABLE | No |
| UP / DOWN MOUNTABLE | N/A |
| INSTALLATION HEIGHT ADJUSTABLE | Yes |
| LOCATION CERTIFICATION | Dry Locations Only |
| ADA COMPLIANT | No |
| HEAVY DUTY MOUNTING KIT AVAILABLE | No |
| ADDITIONAL KIT AVAILABLE | No |
