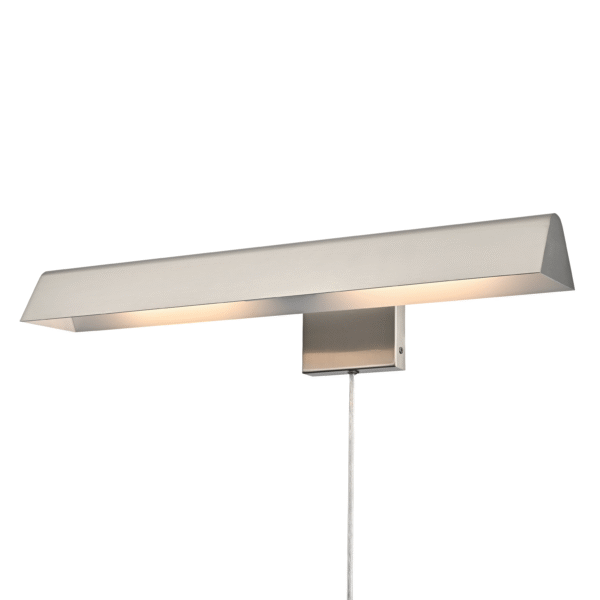

Carlyle 23.75″ Picture Light
Product Description
Carlyle 23.75″ Picture Light
Last inventory update: March 22, 2025 8:07 pm
Planner Code: –
Resources
Carlyle 23.75″ Picture Light
Product Description
Carlyle 23.75″ Picture Light
Last inventory update: March 22, 2025 8:07 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP35543 |
| Family | Carlyle |
| Product Class | Wall |
| Product Subclass | Picture |
| Room Category | Living Spaces |
Product Dimensions
| Product Length / Diameter | N/A inches | N/A mm |
| Product Width | 23.75 inches | 600 mm |
| Product Depth | 8 1/4 – 11 1/2 inches | 209.55 – 292.1 mm |
| Product Height | 4.75 inches | 120 mm |
| Minimum Product Height | 4.75 inches | 120 mm |
| Maximum Product Height | 4.75 inches | 120 mm |
| Canopy Length / Diameter | 4.75 inches | 120 mm |
| Canopy Width | 4.75 inches | 120 mm |
| Canopy Thickness | 1 inches | 25 mm |
Lamping Specifications
| Orientation of Light Source | Sideways |
| Number of Sockets | 2 |
| Total Wattage (W) | 2 X 70 |
| Wattage of Individual Bulb Socket (W) | 70 |
| Voltage (V) | 120 |
| Lamping Confinement | Mostly Open |
| Socket Type | Medium Base (E26) |
| Recommended Bulb | E26 T10 Medium Clear |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | N/A |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | N/A |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | N/A |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | N/A |
| CRI | N/A |
| Color Temperature | N/A |
Pipe / Chain / Cord Information
| Pipe / Chain Included | N/A |
| Pipe Information | N/A |
| Chain Information | N/A |
| Wire / Cord Information | 72 in |
| Max Sloped Ceiling Angle | N/A |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | Yes |
| Up / Down Mountable | Multi-Orientation |
| Installation Height Adjustable | No |
| Location Certification | Dry Locations Only |
| ADA Compliant | No |
| Heavy Duty Mounting Kit Available | No |
| Additional Kit Available | N/A |
