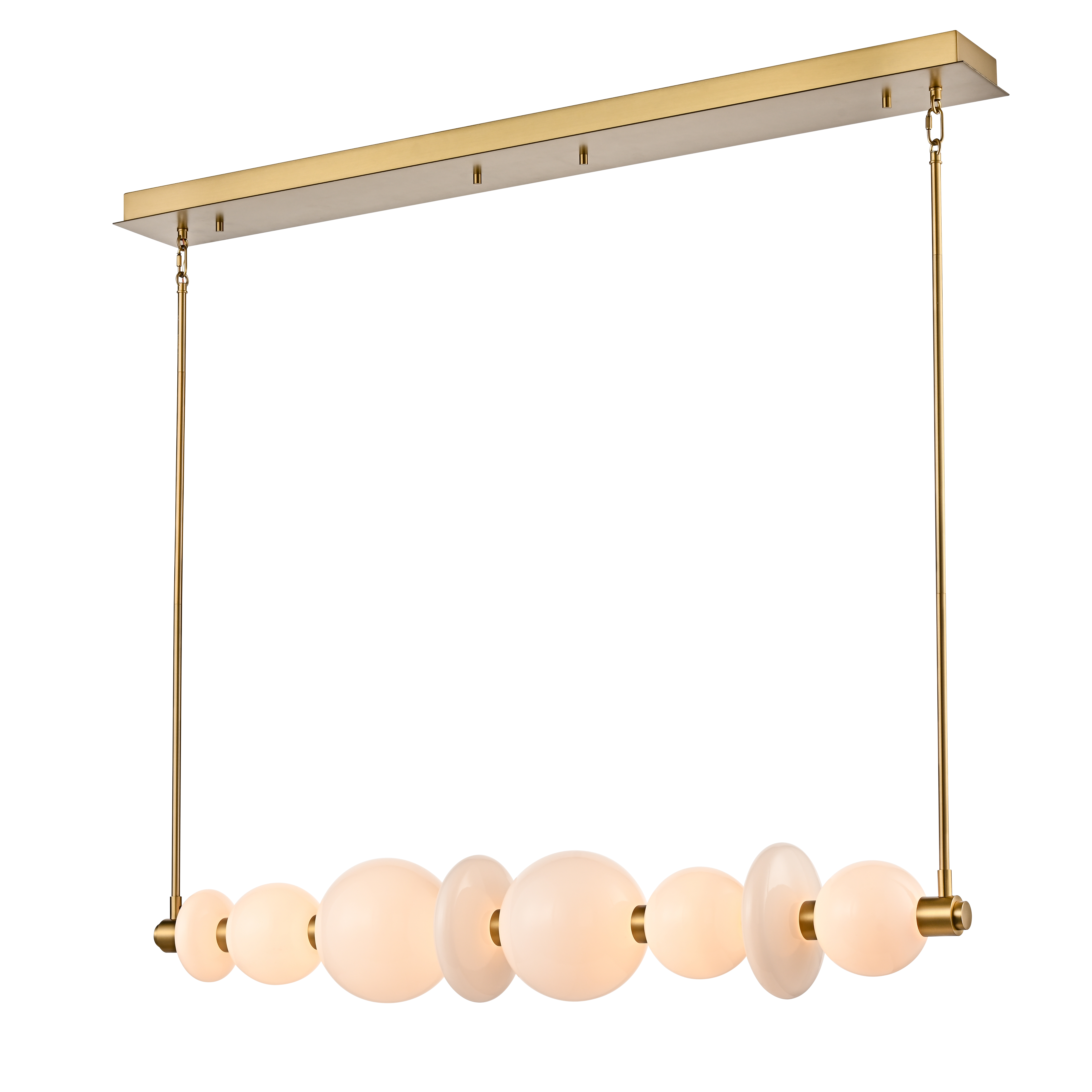

Corsair Linear
Product Description
Corsair Linear
Last inventory update: March 22, 2025 8:15 pm
Planner Code: –
Resources
Corsair Linear
Product Description
Corsair Linear
Last inventory update: March 22, 2025 8:15 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP48104 |
| Family | Corsair |
| Product Class | Ceiling |
| Product Subclass | Linear |
| Room Category | Kitchen & Dining |
Product Dimensions
| Product Length / Diameter | 43.75 inches | 1110 mm |
| Product Width | 7.25 inches | 179 mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 7.25 inches | 179 mm |
| Minimum Product Height | 12.75 inches | 324 mm |
| Maximum Product Height | 48.75 inches | 1238 mm |
| Canopy Length / Diameter | 45.75 inches | 1162 mm |
| Canopy Width | 4.75 inches | 120 mm |
| Canopy Thickness | 1 inches | 21 mm |
Lamping Specifications
| Orientation of Light Source | Multidirectional |
| Number of Sockets | N/A |
| Total Wattage (W) | 1 X 50 |
| Wattage of Individual Bulb Socket (W) | N/A |
| Voltage (V) | 120 |
| Lamping Confinement | Fully Enclosed |
| Socket Type | DC LED |
| Recommended Bulb | N/A |
| Bulbs Included | Yes |
LED Information (LED Only)
| Initial Lumens Output | 5000 |
| Delivered Lumens (2700K) | 2232 |
| Delivered Lumens (3000K) | 2242 |
| Delivered Lumens (3500K) | 2248 |
| Delivered Lumens (4000K) | 2300 |
| Delivered Lumens (5000K) | 2336 |
| Required Dimmer | LED+/Universal |
| CRI | 80+ |
| Color Temperature | 2700/3000/3500/4000/5000 |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Yes, Pipe |
| Pipe Information | 40 |
| Chain Information | N/A |
| Wire / Cord Information | 120 in |
| Max Sloped Ceiling Angle | 90° (Chain Link) |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | N/A |
| Up / Down Mountable | Down Only |
| Installation Height Adjustable | Yes |
| Location Certification | Dry Locations Only |
| ADA Compliant | N/A |
| Heavy Duty Mounting Kit Available | No |
| Additional Kit Available | N/A |
