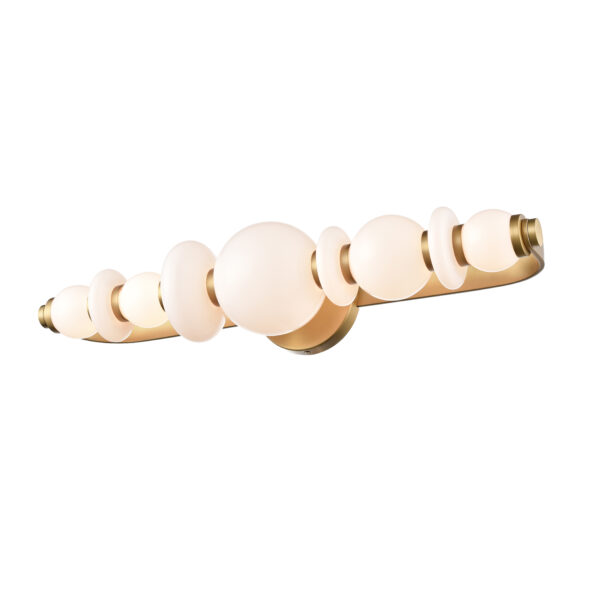

Corsair Vanity
Product Description
Corsair Vanity
Last inventory update: March 18, 2025 8:15 pm
Planner Code: –
Resources
Corsair Vanity
Product Description
Corsair Vanity
Last inventory update: March 18, 2025 8:15 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP48143 |
| Family | Corsair |
| Product Class | Wall |
| Product Subclass | Vanity |
| Room Category | Bathroom |
Product Dimensions
| Product Length / Diameter | N/A inches | N/A mm |
| Product Width | 23 inches | 580 mm |
| Product Depth | 7 inches | 174 mm |
| Product Height | 5.25 inches | 131 mm |
| Minimum Product Height | 5.25 inches | 131 mm |
| Maximum Product Height | 5.25 inches | 131 mm |
| Canopy Length / Diameter | 5.25 inches | 130 mm |
| Canopy Width | N/A inches | N/A mm |
| Canopy Thickness | 1 inches | 20 mm |
Lamping Specifications
| Orientation of Light Source | Multidirectional |
| Number of Sockets | N/A |
| Total Wattage (W) | 1 X 30 |
| Wattage of Individual Bulb Socket (W) | N/A |
| Voltage (V) | 120 |
| Lamping Confinement | Fully Enclosed |
| Socket Type | DC LED |
| Recommended Bulb | N/A |
| Bulbs Included | Yes |
LED Information (LED Only)
| Initial Lumens Output | 3000 |
| Delivered Lumens (2700K) | 1135 |
| Delivered Lumens (3000K) | 1147 |
| Delivered Lumens (3500K) | 1165 |
| Delivered Lumens (4000K) | 1191 |
| Delivered Lumens (5000K) | 1212 |
| Required Dimmer | LED+/Universal |
| CRI | 80+ |
| Color Temperature | 2700/3000/3500/4000/5000 |
Pipe / Chain / Cord Information
| Pipe / Chain Included | N/A |
| Pipe Information | N/A |
| Chain Information | N/A |
| Wire / Cord Information | 8 in |
| Max Sloped Ceiling Angle | N/A |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | Yes |
| Up / Down Mountable | Multi-Orientation |
| Installation Height Adjustable | N/A |
| Location Certification | Dry Locations Only |
| ADA Compliant | No |
| Heavy Duty Mounting Kit Available | N/A |
| Additional Kit Available | N/A |
