Sambre Mini-Pendant
Product description

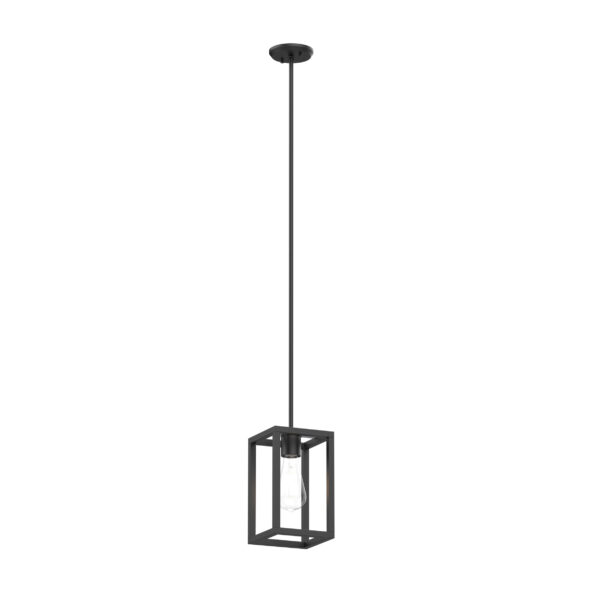

The Sambre collection exploits simple and modern rectangular frames that forms a cage around the light bulbs. The bulbs are further protected with a layer of clear cylindrical glass that completes the appeal of the fixtures.
Finish option
Last inventory update: December 2, 2021 8:03 pm
Resources
Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on print
| PARENT CODE | DVP28121 |
| FAMILY | Sambre |
| PRODUCT CLASS | Ceiling |
| PRODUCT SUBCLASS | Mini-Pendant |
| WARRANTY | 5 Years Residential or 20000 Hours Commercial |
| PRODUCT LENGTH/DIAMETER | 6.75 inches | 170 mm |
| PRODUCT WIDTH | 6.75 inches | 170 mm |
| PRODUCT DEPTH | N/A inches | N/A mm |
| PRODUCT HEIGHT | 11.75 inches | 296 mm |
| MINIMUM PRODUCT HEIGHT | 13.25 inches | 337 mm |
| MAXIMUM PRODUCT HEIGHT | 53.25 inches | 1353 mm |
| CANOPY LENGTH/DIAMETER | inches | mm |
| CANOPY WIDTH | inches | mm |
| CANOPY THICKNESS | inches | mm |
| ORIENTATION OF LIGHT SOURCE | Down |
| TOTAL WATTAGE | 70 |
| NUMBER OF SOCKETS | 1 |
| WATTAGE OF INDIVIDUAL BULB SOCKET | 70 |
| LAMP CONFINEMENT | Fully Open |
| SOCKET TYPE | Medium Base (E26) |
| RECOMMENDED BULB | DVLA19MC30A |
| VOLTAGE (V) | 120 |
| BULBS INCLUDED | No |
| TOTAL INITIAL LUMEN OUTPUT | N/A |
| RECQUIRED DIMMER | N/A |
| CRI | N/A |
| COLOR TEMPERATURE | N/A |
| PIPE / CHAIN INCLUDED | Pipe Kit Available |
| PIPE INFORMATION | 40 (15 + 12 + 9 + 4) x 0.5 Inches Pipe Kit |
| CHAIN INFORMATION | N/A |
| WIRE / CORD | 10 Ft |
| MAX SLOPED CEILING ANGLE | 19 Degrees |
| *Conversion 19° to 45° : ASY0101+Finish (2 loops + 1 chain): For Additional Cost | |
| WALL / CEILING MOUNTABLE | No |
| UP / DOWN MOUNTABLE | N/A |
| INSTALLATION HEIGHT ADJUSTABLE | Yes |
| LOCATION CERTIFICATION | Dry Locations Only |
| ADA COMPLIANT | No |
| HEAVY DUTY MOUNTING KIT AVAILABLE | No |
| ADDITIONAL KIT AVAILABLE | No |
