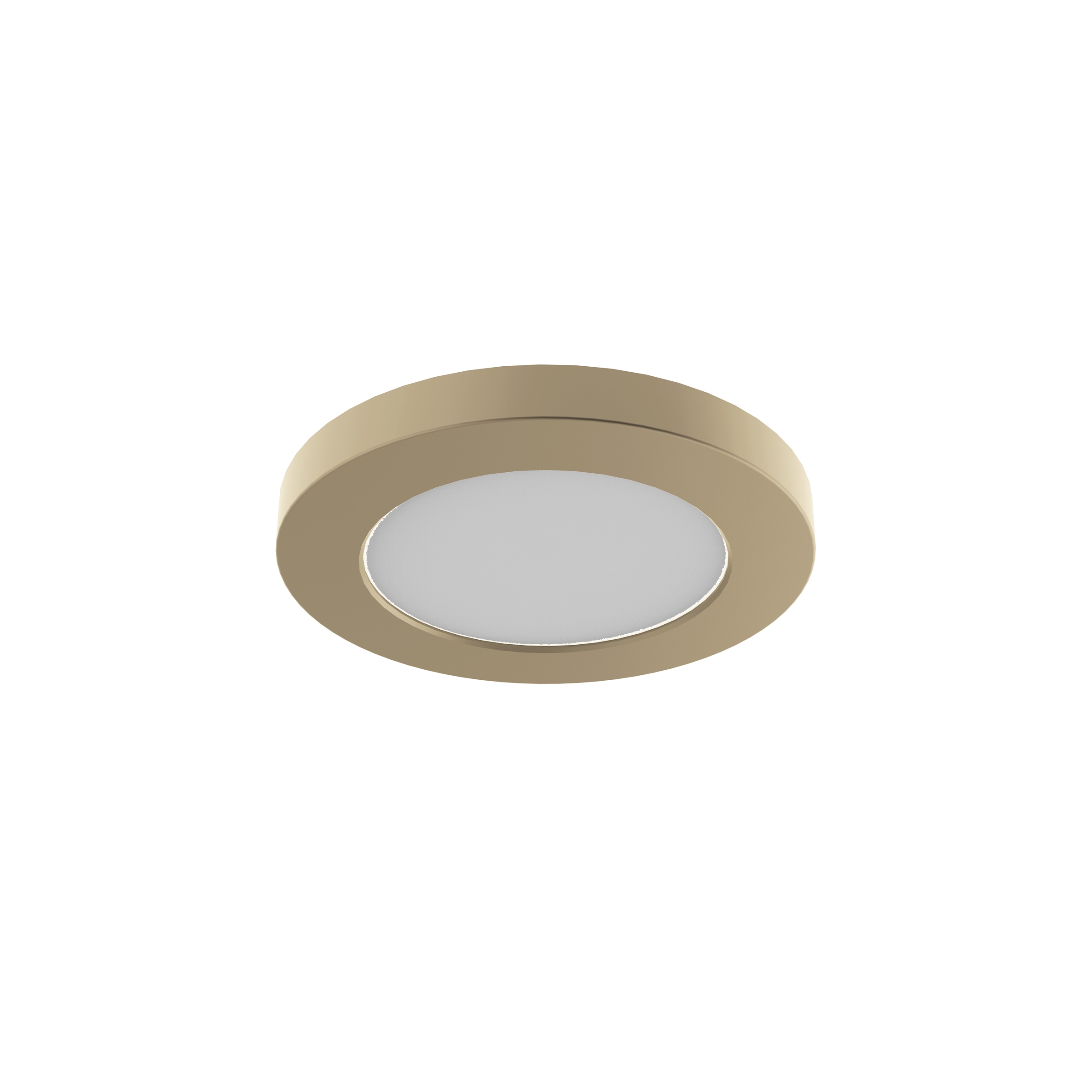

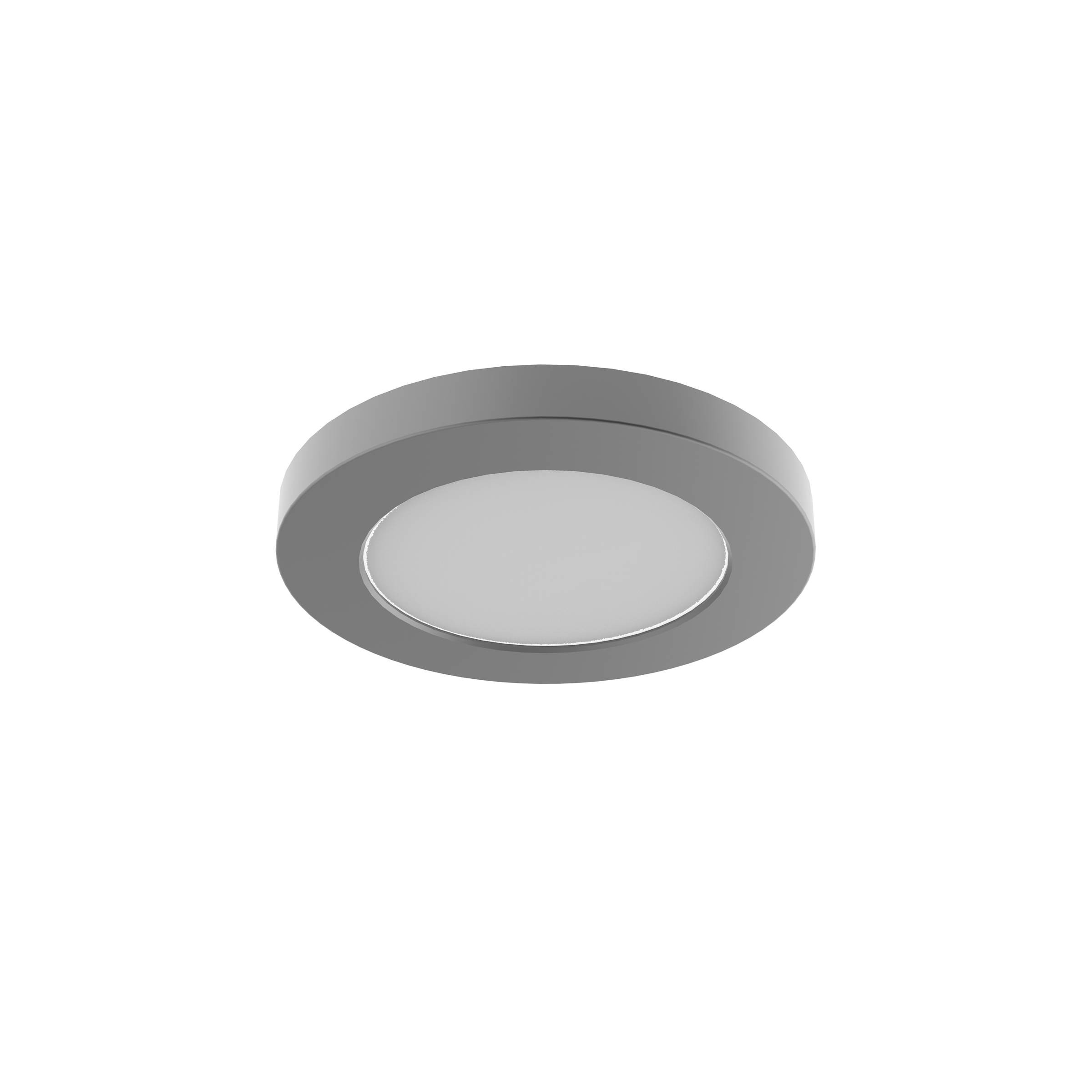

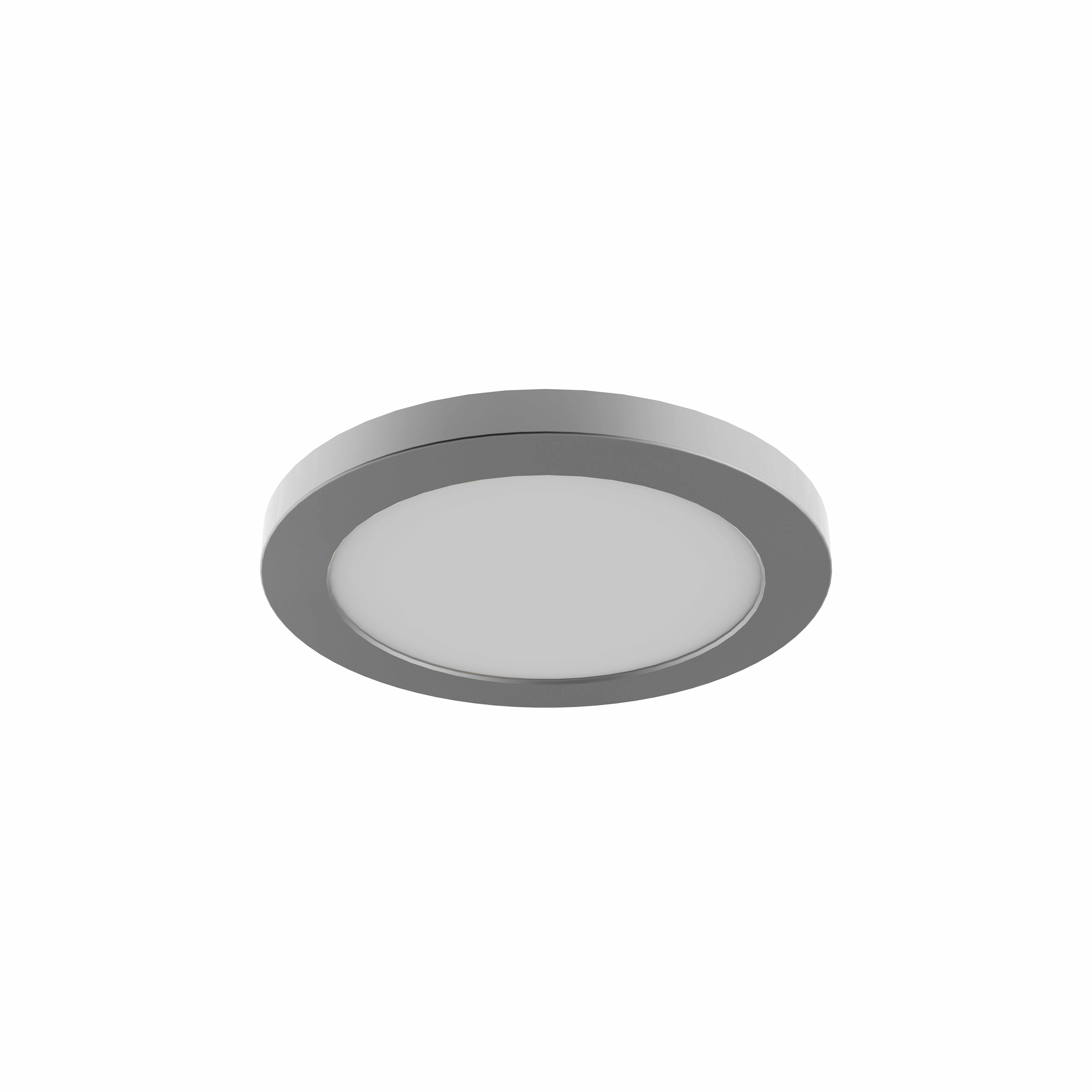

Avro LED 5.5″ Flush Mount
Product Description
Ultra new technology allows the maximum of light output in the smallest possible form factor. Less than 1” thick, the Avro LED integrated disc is complemented by an electroplated stainless-steel ring which is held on using magnetism. Available in several sizes and with different finishes of metal rings.
Last inventory update: October 2, 2024 8:07 pm
Resources
Avro LED 5.5″ Flush Mount
Product Description
Ultra new technology allows the maximum of light output in the smallest possible form factor. Less than 1” thick, the Avro LED integrated disc is complemented by an electroplated stainless-steel ring which is held on using magnetism. Available in several sizes and with different finishes of metal rings.
Last inventory update: October 2, 2024 8:07 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP38908 |
| Family | Avro LED |
| Product Class | Ceiling |
| Product Subclass | Flush Mount |
| Room Category | Living Spaces |
| Case Quantity | pieces/master box |
Product Dimensions
| Product Length / Diameter | 5.5 inches | 140 mm |
| Product Width | N/A inches | N/A mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 0.5 inches | 13 mm |
| Minimum Product Height | N/A inches | N/A mm |
| Maximum Product Height | N/A inches | N/A mm |
| Canopy Length / Diameter | N/A inches | N/A mm |
| Canopy Width | N/A inches | N/A mm |
| Canopy Thickness | N/A inches | N/A mm |
Lamping Specifications
| Orientation of Light Source | Down |
| Total Wattage | 6 |
| Number of Sockets | 1 |
| Wattage of Individual Bulb Socket | 6 |
| Lamp Confinement | Fully Enclosed |
| Socket Type | LED (Non-Replaceable) |
| Recommended Bulb | N/A |
| Voltage (V) | 120 |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | 600 |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | 360 |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | 360 |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | C•L / LED+ / Universal LED |
| CRI | 80+ |
| Color Temperature | 3000K / 4000K |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Not Included |
| Pipe Information | N/A |
| Chain Information | N/A |
| Wire / Cord Information | N/A |
| Max Sloped Ceiling Angle | N/A |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | Yes |
| Up / Down Mountable | No |
| Installation Height Adjustable | No |
| Location Certification | Damp Locations Only |
| ADA Compliant | Yes |
| Heavy Duty Mounting Kit Available | N/A |
| Additional Kit Available | No |
