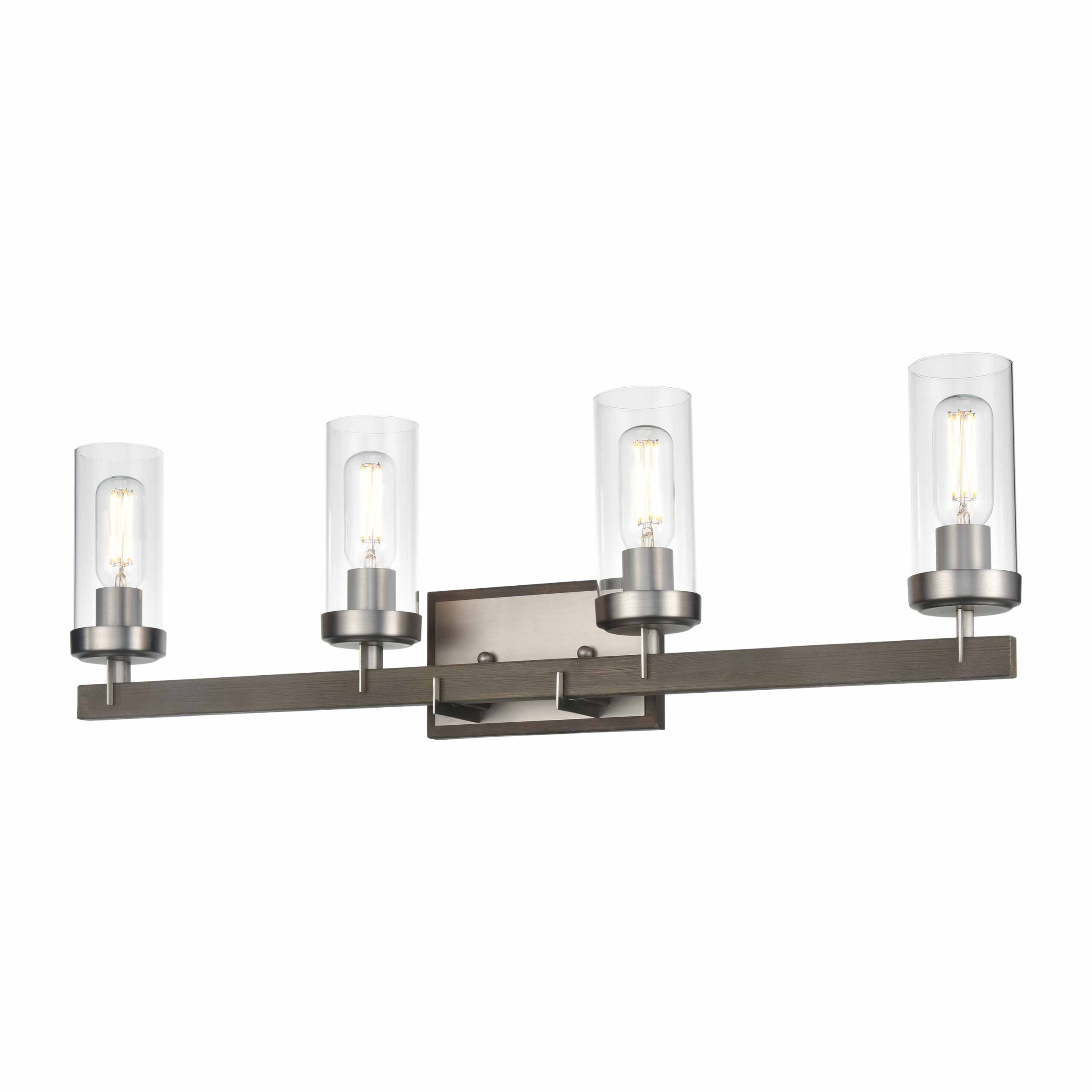

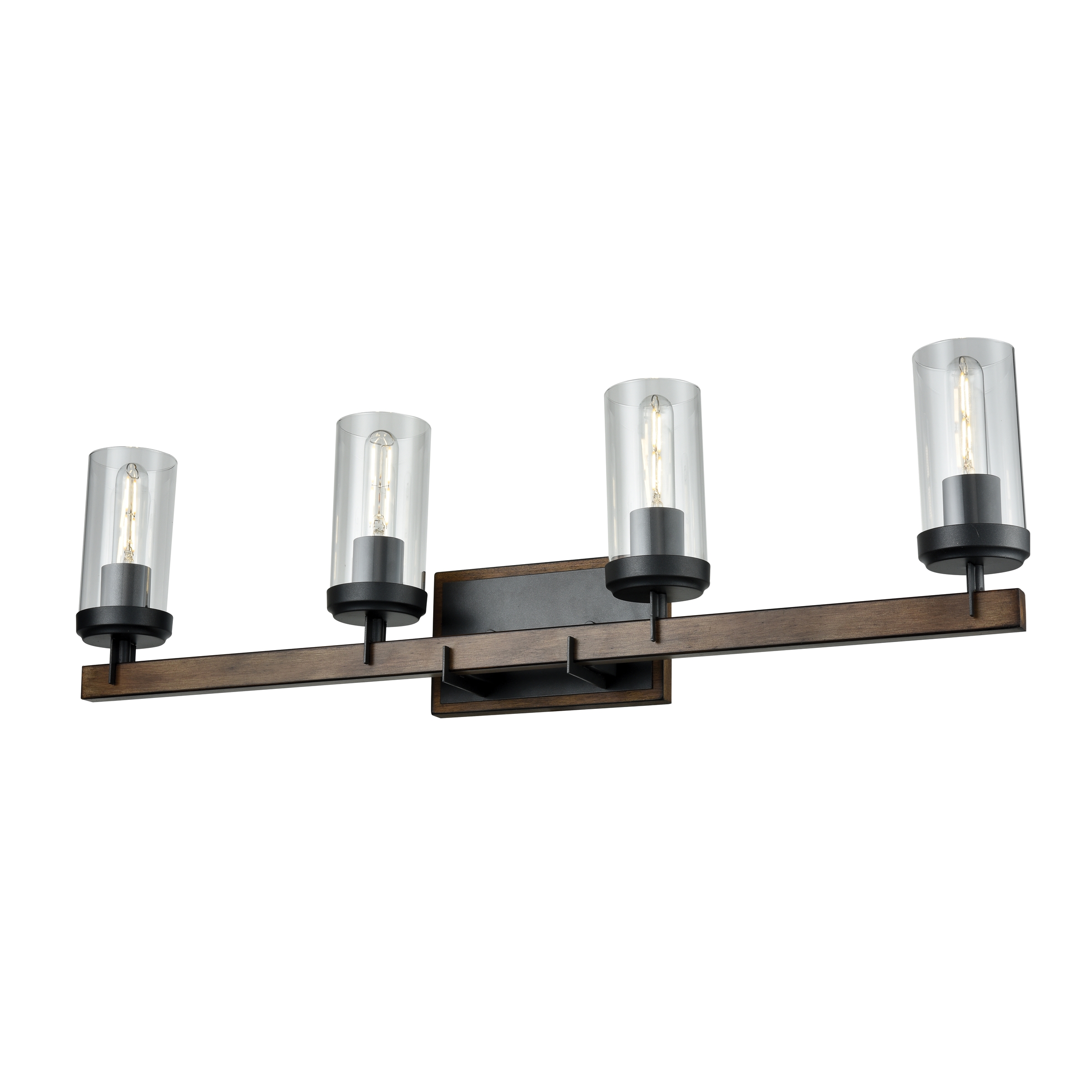

Okanagan 4 Light Vanity

SKU DVP38644 Categories , , Tag

Product description

This Okanagan 4 Light Vanity provides ambient up lighting.

Finish option

Clear

Resources

Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on print
PARENT CODE DVP38644
FAMILY Okanagan
PRODUCT CLASS Wall
PRODUCT SUBCLASS Vanity
ALTERNATE KEY
WARRANTY 5 years
PRODUCT LENGTH/DIAMETER32.75 inches833 mm
PRODUCT WIDTHN/A inchesN/A mm
PRODUCT DEPTH4.75 inches120.5 mm
PRODUCT HEIGHT9.25 inches238 mm
MINIMUM PRODUCT HEIGHTN/A inchesN/A mm
MAXIMUM PRODUCT HEIGHTN/A inchesN/A mm
CANOPY LENGTH/DIAMETER inches mm
CANOPY DEPTH inches mm
CANOPY WIDTH inches mm
ORIENTATION OF LIGHT SOURCEUp
TOTAL WATTAGE280
NUMBER OF PRIMARY SOCKETS4
NUMBER OF SECONDARY SOCKETSN/A
WATTAGE OF PRIMARY SOCKETS70
WATTAGE OF SECONDARY SOCKETSN/A
LAMP CONFINEMENTSemi Enclosed
PRIMARY LIGHT SOURCEMedium Base
SECONDARY LIGHT SOURCEN/A
RECOMMENDED BULBDVLA19MC30A
TOTAL INITIAL LUMEN OUTPUT (LED ONLY)N/A
VOLTAGE (V)120
BULBS INCLUDEDN
RECQUIRED DIMMER (LED ONLY)N/A
CRIN/A
COLOR TEMPERATURE (K)N/A
BOARD 1 MODELN/A
BOARD 2 MODELN/A
BOARD 3 MODELN/A
BOARD 1 QUANTITYN/A
BOARD 2 QUANTITYN/A
BOARD 3 QUANTITYN/A
BOARD 1 WATTAGEN/A
BOARD 2 WATTAGEN/A
BOARD 3 WATTAGEN/A
BOARD 1 BRIGHTNESSN/A
BOARD 2 BRIGHTNESSN/A
BOARD 3 BRIGHTNESSN/A
NUMBER OF BOARDS (LED ONLY)N/A
NET WATTAGE (LED)N/A
CHAIN TYPEN/A
CHAIN/PIPE THICKNESS0.47 inches12 mm
PIPE/CHAIN KIT AVAILABLEY
TOTAL PIPE LENGTH40 inches mm
ADDITIONAL KIT AVAILABLEN/A
HEAVY DUTY MOUNTING KIT AVAILABLEN/A
INSTALLATION HEIGHT ADJUSTABLEN/A
MAXIMUM SLOPE ANGLEN/A
REPLACEMENT PART NUMBER
ADA COMPLIANTN
LOCATION CERTIFICATIONDry Locations Only
WALL / CEILING MOUNTABLE
CONDUCTOR LENGTH120 inches3048 mm
CONDUCTOR TYPE2 x 18AWG Conductors UL AWM 3321 150°C 600V with Bare Copper Ground (Black/White)
CLOTH COVERED WIRE
WIRING JACKET COLOUR
CORD LENGTH inches3048 mm
INNER HEIGHT mm
INNER LENGTH mm
INNER WIDTH mm
MASTER BOX WEIGHT lbs
PACKAGING CODE
CBM0.10368
SHIPS VIA
