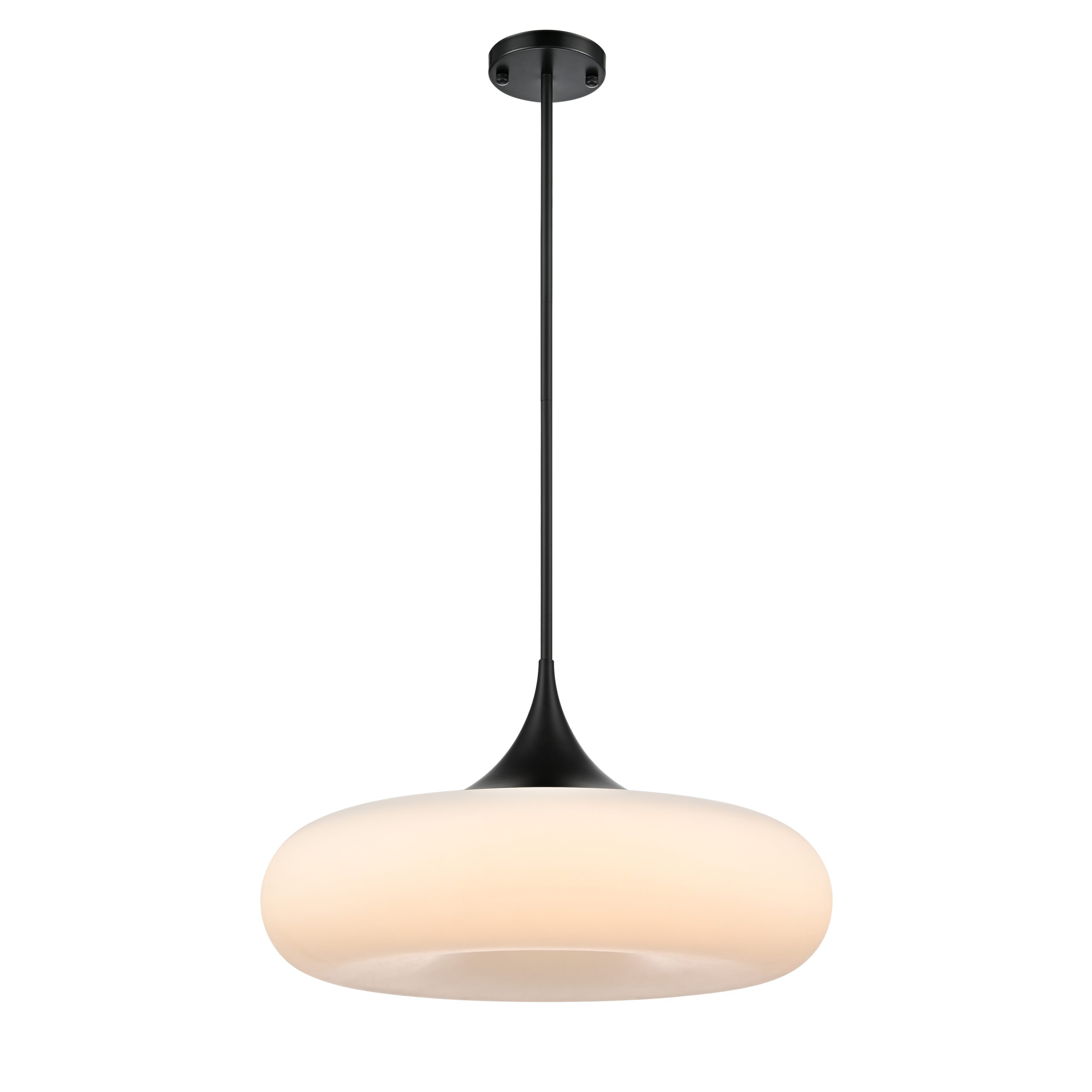

Portage 19.75″ Pendant
Product Description
Portage 19.75″ Pendant
Last inventory update: June 6, 2026 12:13 pm
Planner Code: –
Resources
Portage 19.75″ Pendant
Product Description
Portage 19.75″ Pendant
Last inventory update: June 6, 2026 12:13 pm
Last inventory update: June 6, 2026 12:13 pm
Planner Code: –
Resources
| Parent SKU | DVP24305 |
| Family | Portage |
| Product Class | Ceiling |
| Product Subclass | Pendant |
| Room Category | Living Spaces |
| Product Length / Diameter | 19.69 in | 500 mm |
| Product Width | N/A in | N/A mm |
| Product Depth | N/A in | N/A mm |
| Product Height | 11.1 in | 282 mm |
| Minimum Product Height | 12.47 in | 317 mm |
| Maximum Product Height | 52.47 in | 1333 mm |
| Canopy Length / Diameter | 4.72 in | 120 mm |
| Canopy Width | N/A in | N/A mm |
| Canopy Thickness | 0.79 in | 20 mm |
| Orientation of Light Source | Down |
| Number of Sockets | 1 |
| Total Wattage (W) | 1 X 42W |
| Wattage of Individual Bulb Socket (W) | 42W |
| Voltage (V) | 120 |
| Lamping Confinement | Fully Enclosed |
| Socket Type | DC LED |
| Recommended Bulb | N/A |
| Bulbs Included | Yes |
| Color Temperature | 80+ |
| Initial Lumens Output | 4200 |
| Delivered Lumens (2700K) | 3451 |
| Delivered Lumens (3000K) | 3656 |
| Delivered Lumens (3500K) | 3712 |
| Delivered Lumens (4000K) | 3961 |
| Delivered Lumens (5000K) | 3788 |
| Required Dimmer | LED+/Universal |
| CRI | 80+ |
| Pipe / Chain Included | Yes, Pipe |
| Pipe Information | 40" 12mm pipe |
| Chain Information | N/A |
| Wire / Cord Information | 120" |
| Max Sloped Ceiling Angle | 19° (Hang Straight) |
| Wall / Ceiling Mountable | N/A |
| Fixture Orientation | Down Only |
| Installation Height Adjustable | N/A |
| Location Certification | Dry Locations Only |
| ADA Compliant | N/A |
| Heavy Duty Mounting Kit Available | No |
| Additional Kit Available | No |
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP40053 |
| Family | MOUNT PEARL |
| Product Class | Ceiling |
| Product Subclass | Linear |
| Room Category | REG |
Product Dimensions
| Product Length / Diameter | 30 inches | 762 mm |
| Product Width | N/A inches | N/A mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 20 inches | 508 mm |
| Minimum Product Height | 21.50 inches | 546.10 mm |
| Maximum Product Height | 141.50 inches | 3594.10 mm |
| Canopy Length / Diameter | 25.50 inches | 647.70 mm |
| Canopy Width | N/A inches | N/A mm |
| Canopy Thickness | 1 inches | 25.40 mm |
Lamping Specifications
| Orientation of Light Source | Down |
| Number of Sockets | 1 |
| Total Wattage (W) | 120 |
| Wattage of Individual Bulb Socket (W) | 40 |
| Voltage (V) | 120 |
| Lamping Confinement | Semi Enclosed |
| Socket Type | Medium Base |
| Recommended Bulb | DVLA19MC30A |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | |
| Delivered Lumens (2700K) | |
| Delivered Lumens (3000K) | |
| Delivered Lumens (3500K) | |
| Delivered Lumens (4000K) | |
| Delivered Lumens (5000K) | |
| Required Dimmer | N/A |
| CRI | N/A |
| Color Temperature | N/A |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Not Included |
| Pipe Information | N/A |
| Chain Information | N/A |
| Wire / Cord Information | 10 Ft |
| Max Sloped Ceiling Angle | Cold Grip 45 Degrees |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | No |
| Fixture Orientation | Yes |
| Installation Height Adjustable | Yes |
| Location Certification | Dry Locations Ceritified |
| ADA Compliant | No |
| Heavy Duty Mounting Kit Available | |
| Additional Kit Available | No |
