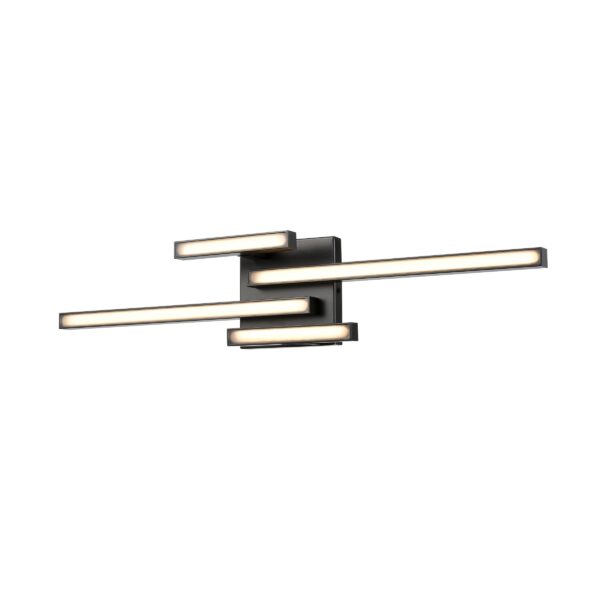

Maud AC LED 25 Inch Vanity

SKU DVP44843 Categories , , Tag

Product description

ETA: TBD 2020

Finish option

Clear

Resources

Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on print
PARENT CODE DVP44843
FAMILY Maud AC LED
PRODUCT CLASS Wall
PRODUCT SUBCLASS Vanity
ALTERNATE KEY
WARRANTY 5 years
PRODUCT LENGTH/DIAMETER25 inches635 mm
PRODUCT WIDTHN/A inchesN/A mm
PRODUCT DEPTH3.5 inches86 mm
PRODUCT HEIGHT10.25 inches259 mm
MINIMUM PRODUCT HEIGHTN/A inchesN/A mm
MAXIMUM PRODUCT HEIGHTN/A inchesN/A mm
CANOPY LENGTH/DIAMETER5 inches mm
CANOPY DEPTH inches mm
CANOPY WIDTH inches mm
ORIENTATION OF LIGHT SOURCESideways
TOTAL WATTAGE22
NUMBER OF PRIMARY SOCKETS1
NUMBER OF SECONDARY SOCKETSN/A
WATTAGE OF PRIMARY SOCKETS22
WATTAGE OF SECONDARY SOCKETSN/A
LAMP CONFINEMENTFully Enclosed
PRIMARY LIGHT SOURCEAC LED
SECONDARY LIGHT SOURCEN/A
RECOMMENDED BULBN/A
TOTAL INITIAL LUMEN OUTPUT (LED ONLY)2200
VOLTAGE (V)120
BULBS INCLUDEDN/A
RECQUIRED DIMMER (LED ONLY)ELV DIMMER RECOMMENDED
CRI90
COLOR TEMPERATURE (K)3000
BOARD 1 MODELN/A
BOARD 2 MODELN/A
BOARD 3 MODELN/A
BOARD 1 QUANTITYN/A
BOARD 2 QUANTITYN/A
BOARD 3 QUANTITYN/A
BOARD 1 WATTAGEN/A
BOARD 2 WATTAGEN/A
BOARD 3 WATTAGEN/A
BOARD 1 BRIGHTNESSN/A
BOARD 2 BRIGHTNESSN/A
BOARD 3 BRIGHTNESSN/A
NUMBER OF BOARDS (LED ONLY)N/A
NET WATTAGE (LED)N/A
CHAIN TYPEN/A
CHAIN/PIPE THICKNESSN/A inchesN/A mm
PIPE/CHAIN KIT AVAILABLEN
TOTAL PIPE LENGTHN/A inches mm
ADDITIONAL KIT AVAILABLEN/A
HEAVY DUTY MOUNTING KIT AVAILABLEN/A
INSTALLATION HEIGHT ADJUSTABLEN/A
MAXIMUM SLOPE ANGLEN/A
REPLACEMENT PART NUMBER
ADA COMPLIANTN
LOCATION CERTIFICATIONWet Location Certified
WALL / CEILING MOUNTABLE
CONDUCTOR LENGTH8 inches203.2 mm
CONDUCTOR TYPE2 x 18AWG Conductors UL AWM 1015 105°C 600V with Bare Copper Ground (Black/White)
CLOTH COVERED WIRE
WIRING JACKET COLOUR
CORD LENGTH inches203.2 mm
INNER HEIGHT mm
INNER LENGTH mm
INNER WIDTH mm
MASTER BOX WEIGHT lbs
PACKAGING CODE
CBM0.017388
SHIPS VIA
