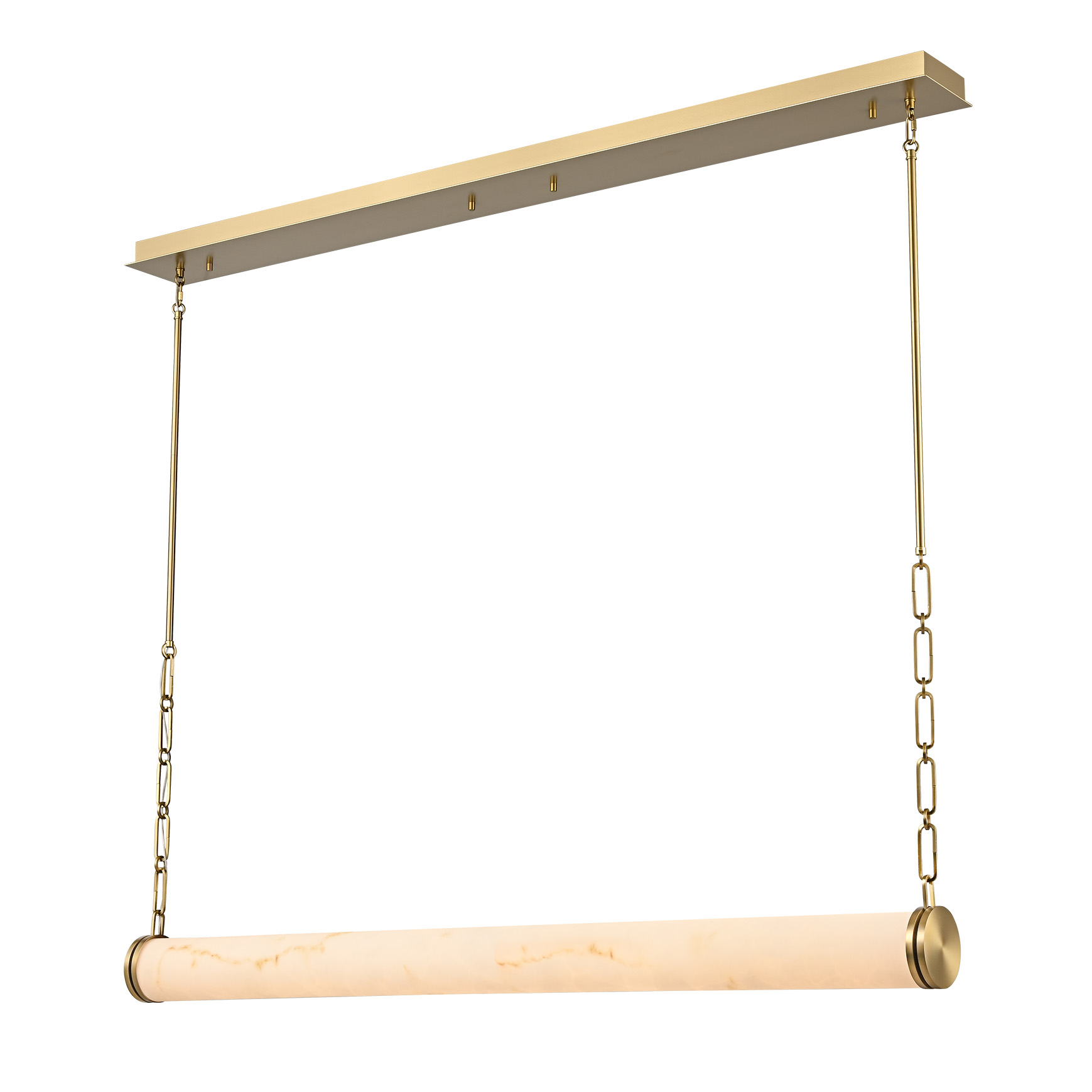

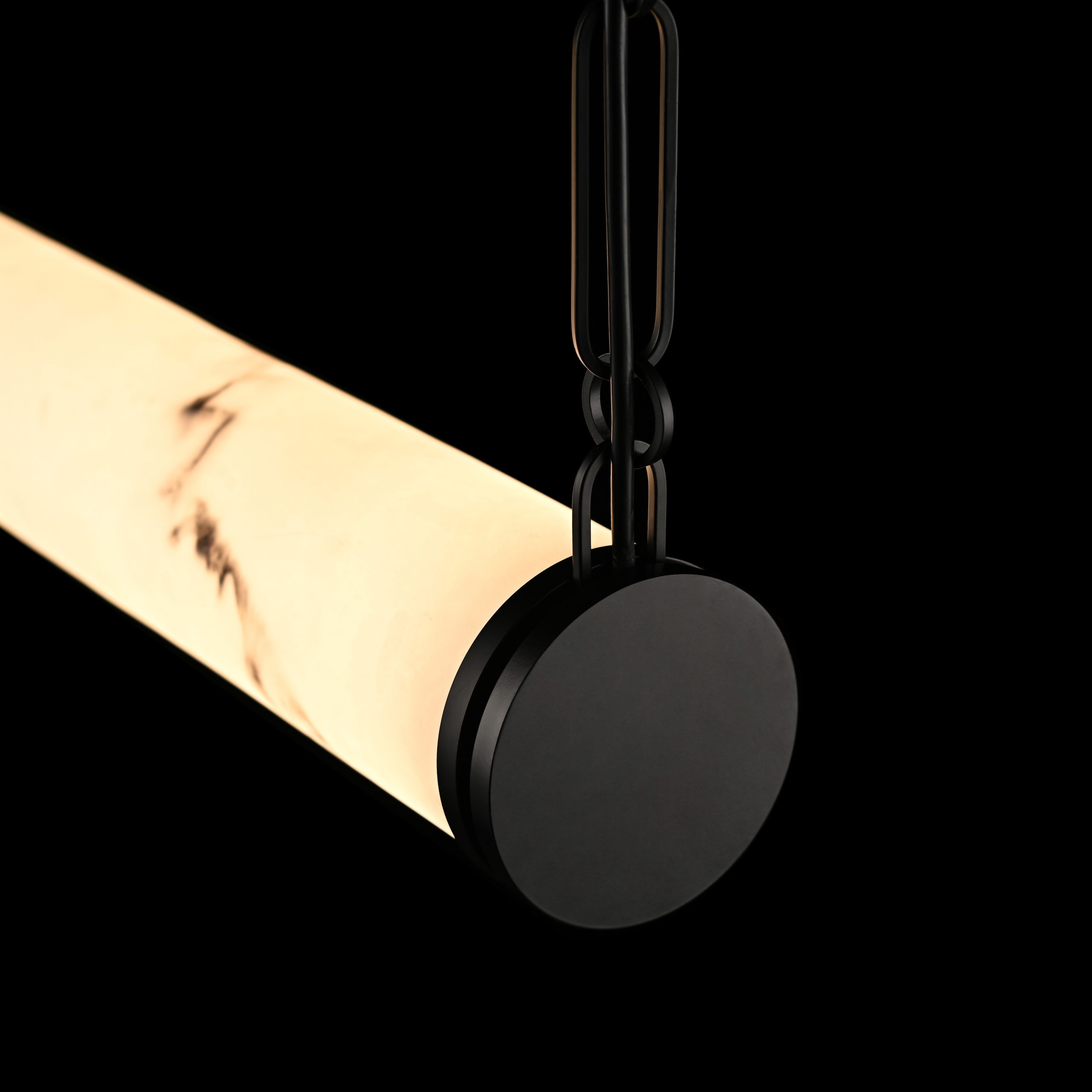

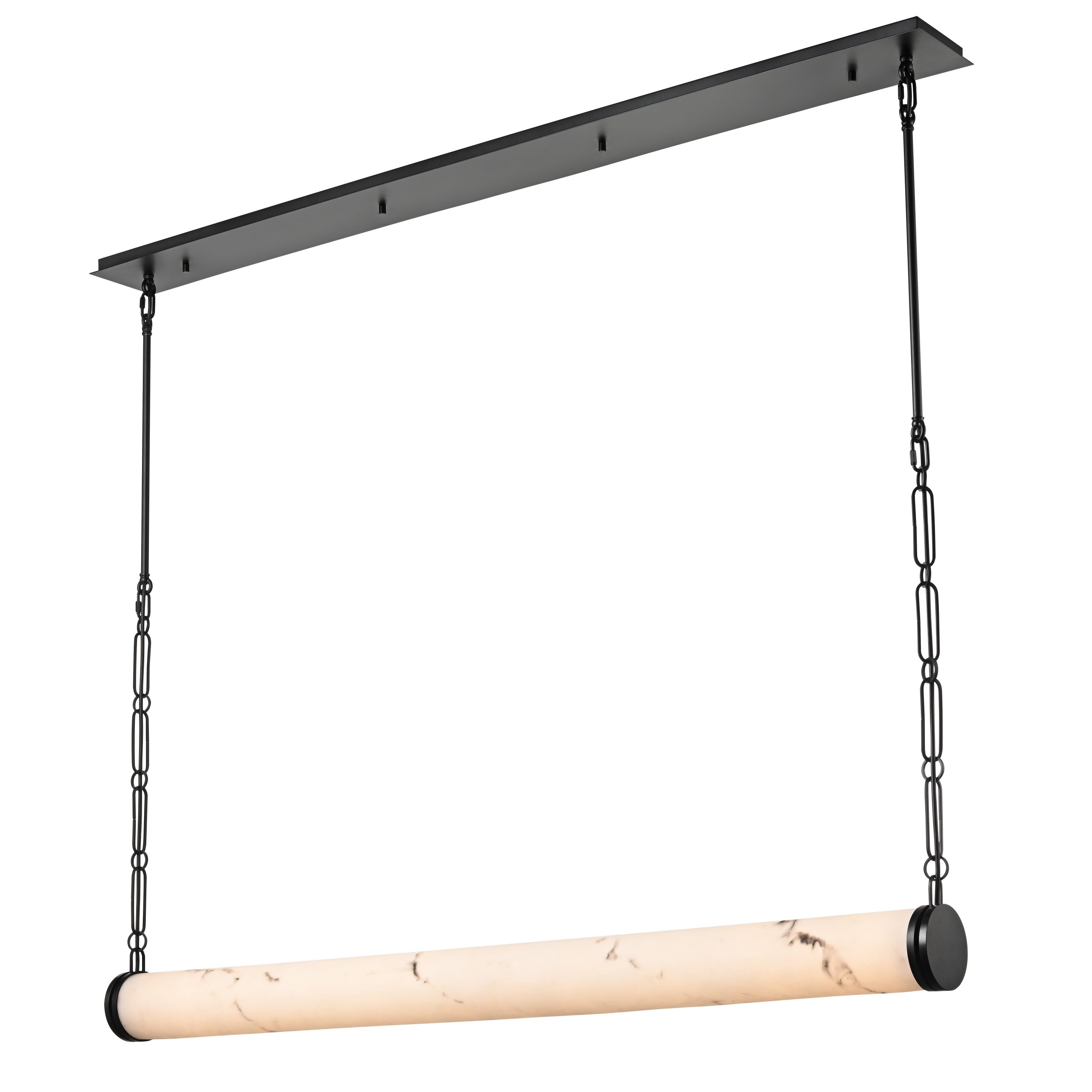

Orvana 54″ Linear
Product Description
Orvana 54″ Linear
Last inventory update: February 27, 2026 4:39 pm
Planner Code: –
Resources
Orvana 54″ Linear
Product Description
Orvana 54″ Linear
Last inventory update: February 27, 2026 4:39 pm
Last inventory update: February 27, 2026 4:39 pm
Planner Code: –
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP25904 |
| Family | Orvana |
| Product Class | Ceiling |
| Product Subclass | Linear |
| Room Category | Kitchen & Dining |
Product Dimensions
| Product Length / Diameter | 54 inches | 1371 mm |
| Product Width | 4.25 inches | 106 mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 4.25 inches | 106 mm |
| Minimum Product Height | 9 inches | 224 mm |
| Maximum Product Height | 85 inches | 2155 mm |
| Canopy Length / Diameter | 57.75 inches | 1182 mm |
| Canopy Width | 5.75 inches | 140 mm |
| Canopy Thickness | 1 inches | 23 mm |
Lamping Specifications
| Orientation of Light Source | Multidirectional |
| Number of Sockets | 1 |
| Total Wattage (W) | 1 X 75 |
| Wattage of Individual Bulb Socket (W) | 75 |
| Voltage (V) | 120 |
| Lamping Confinement | Fully Enclosed |
| Socket Type | DC LED |
| Recommended Bulb | N/A |
| Bulbs Included | Yes |
LED Information (LED Only)
| Initial Lumens Output | 6389 |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | 3833 |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | N/A |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | LED+/Universal |
| CRI | 90+ |
| Color Temperature | 3000K |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Yes, Pipe and Chain |
| Pipe Information | 40″ Length |
| Chain Information | 36″ Standard Duty Chain, 3.8mm Thick |
| Wire / Cord Information | 120″ |
| Max Sloped Ceiling Angle | 90° (Chain Link) |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | N/A |
| Fixture Orientation | Down Only |
| Installation Height Adjustable | During Installation |
| Location Certification | Dry Locations Only |
| ADA Compliant | N/A |
| Heavy Duty Mounting Kit Available | N/A |
| Additional Kit Available | No |
