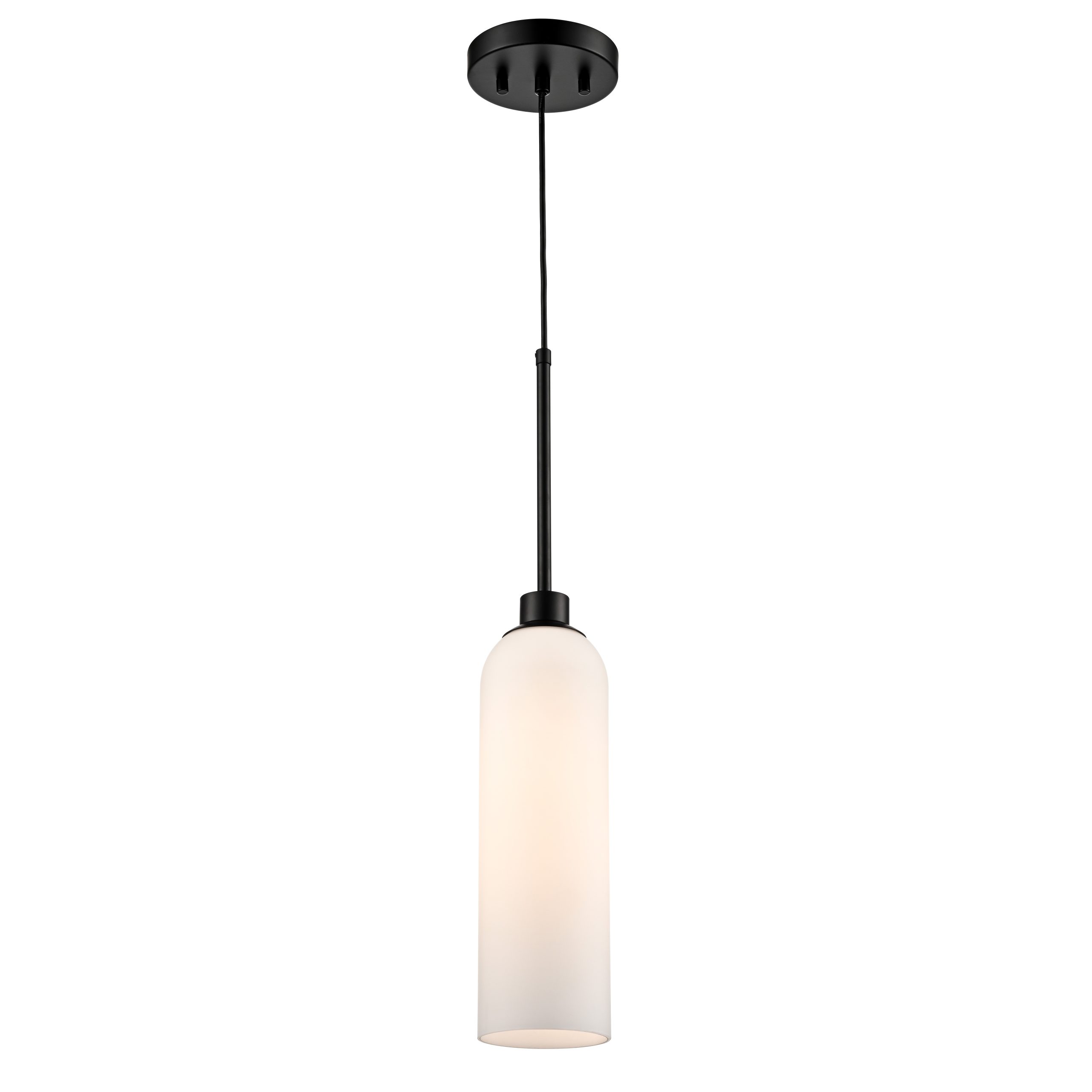

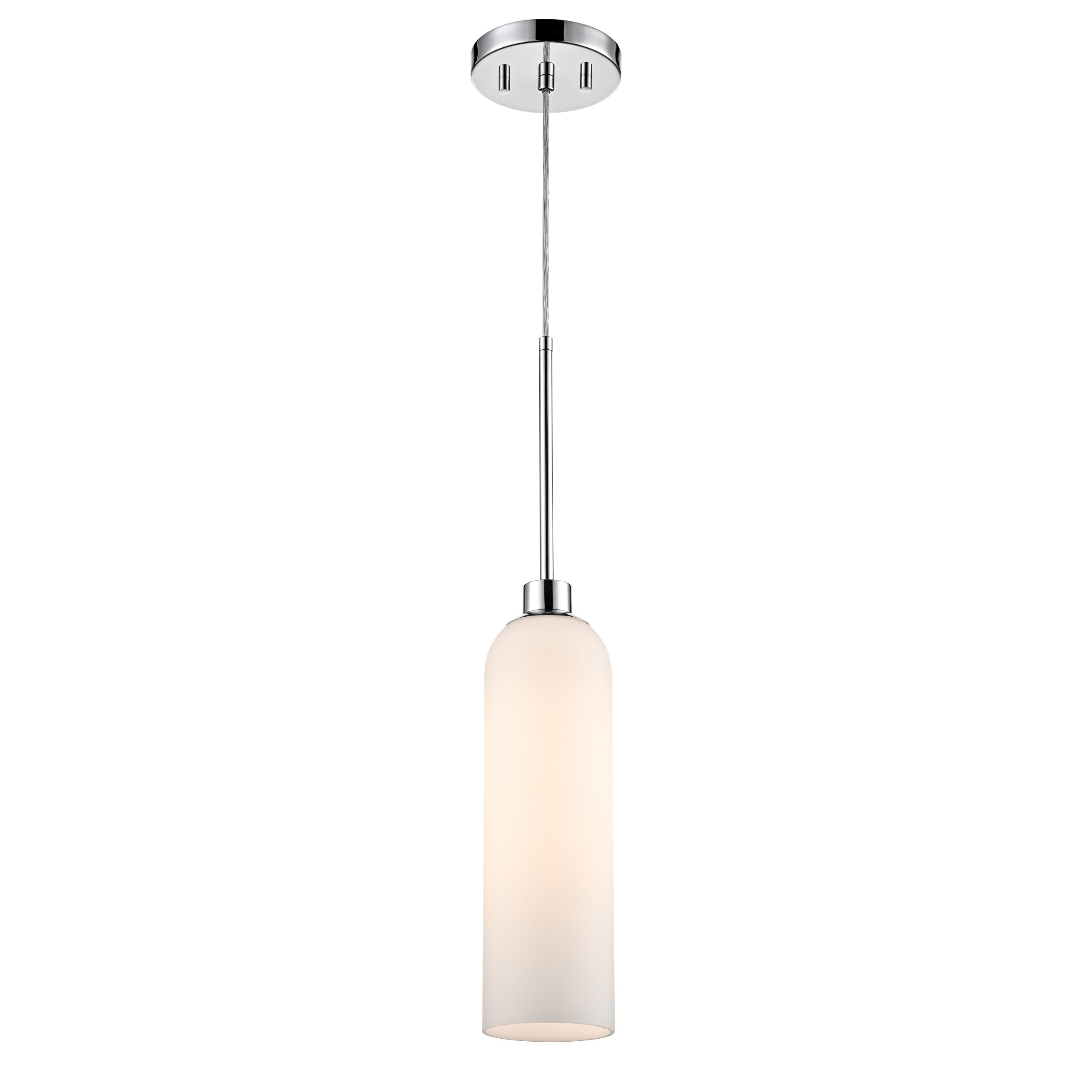

Ratik Pendant
Product Description
Ratik Pendant
Last inventory update: February 26, 2026 11:56 am
Planner Code: –
Resources
Ratik Pendant
Product Description
Ratik Pendant
Last inventory update: February 26, 2026 11:56 am
Last inventory update: February 26, 2026 11:56 am
Planner Code: –
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP19021 |
| Family | Ratik |
| Product Class | Ceiling |
| Product Subclass | Pendant |
| Room Category | Kitchen & Dining |
Product Dimensions
| Product Length / Diameter | 49 inches | 1243 mm |
| Product Width | 18.25 inches | 346 mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 13.75 inches | mm |
| Minimum Product Height | 16.6 inches | 422 mm |
| Maximum Product Height | 92.25 inches | 2341 mm |
| Canopy Length / Diameter | 37.25 inches | 944 mm |
| Canopy Width | 5.75 inches | 140 mm |
| Canopy Thickness | 1 inches | 25 mm |
Lamping Specifications
| Orientation of Light Source | Sideways |
| Number of Sockets | 6 |
| Total Wattage (W) | 6 X 40 |
| Wattage of Individual Bulb Socket (W) | 40 |
| Voltage (V) | 120 |
| Lamping Confinement | Mostly Open |
| Socket Type | Candelabra Base (E12) |
| Recommended Bulb | E12 C35 Clear |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | N/A |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | N/A |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | N/A |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | N/A |
| CRI | N/A |
| Color Temperature | N/A |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Yes, Pipe and Chain |
| Pipe Information | 40in Length |
| Chain Information | 36in Standard Duty Chain |
| Wire / Cord Information | 120 in |
| Max Sloped Ceiling Angle | 90° (Chain Link) |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | No |
| Up / Down Mountable | Down Only |
| Installation Height Adjustable | At Any Time |
| Location Certification | Dry Locations Only |
| ADA Compliant | N/A |
| Heavy Duty Mounting Kit Available | N/A |
| Additional Kit Available | No |
